Easy - Fast - Consistent - Precise
Built for Precision
RazerTRIM Trimming Tools use an electrically heated tip to trim vacuum-formed and pressured materials, including whitening trays, soft denture relines, athletic mouthguards, and snore guards, quickly and easily. The adjustable heat setting assures smooth edges and a comfortable fit on a wide range of materials.
- GOLD pen tips (Titanium Nitride coated) for exceptional wear resistance.
- Our tips offer an excellent non-stick surface and take only seconds to heat and cool.
- Unconditional warranty – 5 years on Control Systems, 3 years on Pens.
- Approved for safety in Labs and Industrial or Commercial use (ETL c/us).
Trimming Control Systems

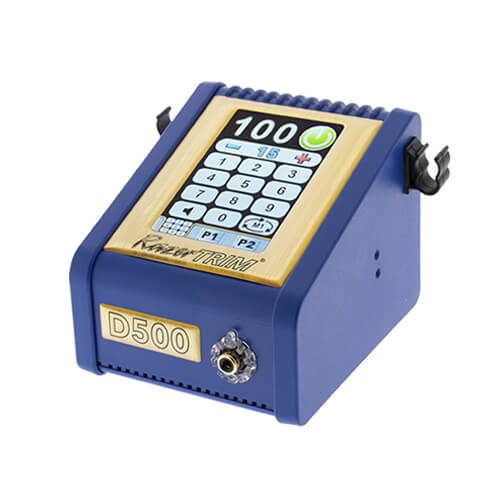

RazerTRIM D500
Precision... Adjust your trimming tool to the exact setting required for efficiently trimming plastics and other synthetics. Customize unique heat settings and names for the eight one-touch memory channels. The RazerTRIM® D500 Control System features a universal power supply that ensures flawless heat consistency and recovery without interruptions, dips, or spikes. Your selected heat setting will remain steady from day to day, no matter where you are in the world. Experience unmatched precision and consistency with the RazerTRIM D500.
Technical Data: RazerTRIM D500
Type: Power regulated, touch screen digital heat trimming tool
Model: D500 Input: 100-240VAC, 50-60Hz, 1.0A
Input connector: IEC 60320 type C8
Output: 6VDC, 8.0A DC max.
Wattage: Max. 48 watts
Operating tip temperature: (approx.) 50ºC to 500ºC (120ºF to 900ºF)
Operating temperature (ambient) 0ºC-40ºC
Size: 4.5" x 4.5" x 3.6" (115mm x 115mm x 91mm)
Weight: 15.5oz. / 440g.
Safety Certification: ETL C-US (North America) File 5010480

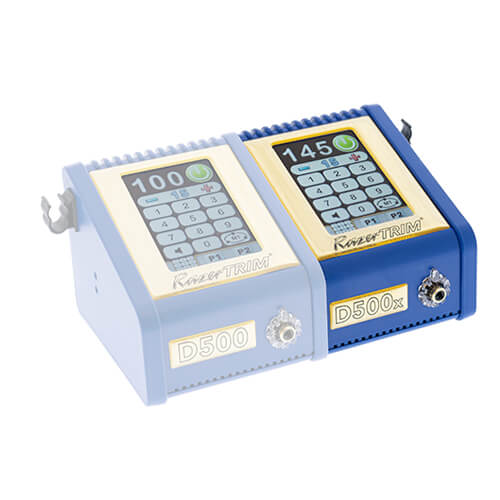

RazerTRIM D500x
Expansion module
Versatility… Take your efficiency to another level by adding the D500x Expansion Module. Attach the Expansion Module to your D500 and easily switch between pens with a tap of the touchscreen. Each Expansion Module offers the same features as the D500, including touch screen control, eight fully customizable one-touch memory channels, three additional quick memory settings, user-programmable nudge settings, and the same level of precision and control.
(Note: the D500x will not function without the D500 Base Unit)
Technical Data: RazerTRIM D500x
Type: Power regulated, touch screen digital heat trimming tool
Model: D500x Input: 100-240VAC, 50-60Hz, 1.0A
Input connector: IEC 60320 type C8
Output: 6VDC, 8.0A DC max.
Wattage: Max. 48 watts
Operating tip temperature: (approx.) 50ºC to 500ºC (120ºF to 900ºF)
Operating temperature (ambient) 0ºC-40ºC
Size: 4.5" x 4.5" x 3.6" (115mm x 115mm x 91mm)
Weight: 15.5oz. / 440g.
Safety Certification: ETL C-US (North America) File 5010480

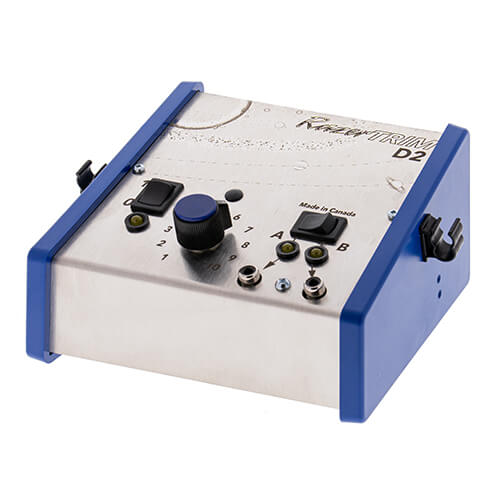

RazerTRIM D2
RazerTRIM D2 Dual Handpiece Controller provides reliable and precise temperature control. It is rated for continuous operation and can provide tip temperatures from 150ºC to 500ºC (300ºF to 900ºF).
Technical Data: RazerTRIM D2
Type: Electronic hot-wire trimming tool
Model: D2 Input: 120VAC, 60Hz, 0.30A
Output: 2.2VAC, 10.0A max.
Wattage: Max. 45 watts
Operating tip temperature: 150ºC to 500ºC (300ºF to 900ºF) approx.
Size: 5" x 7" x 3.5" (127mm x 177mm x 82mm)
Weight: 2.6 lb. / 1.2kg.
Safety Certification: ETL C-US (North America) File 5010480

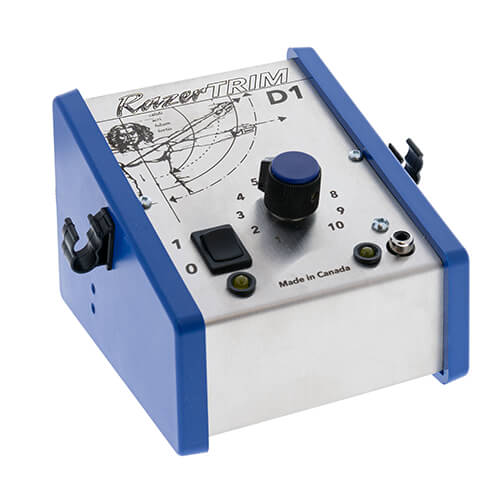

RazerTrim D1
RazerTRIM D1 Single Handpiece Controller provides reliable and precise temperature control. It is rated for continuous operation and can provide tip temperatures from 150ºC to 500ºC (300ºF to 900ºF), approximately.
Technical Data: RazerTRIM D1
Type: Electronic hot-wire trimming tool
Model: D1 Input: 120VAC, 60Hz, 0.30A
Output: 2.2VAC, 10.0A max.
Wattage: Max. 45 watts
Operating tip temperature: 150ºC to 500ºC (300ºF to 900ºF) approx.
Size: 5" x 5" x 3.5" (127mm x 127mm x 82mm)
Weight: 2.6 lb. / 1.2kg.
Safety Certification: ETL C-US (North America) File 5010480
Trimming Pens
Large Skew #TRIM1L
General use tip, used for cutting and fine detail work. A very versatile pen.
Small Skew #TRIM1S
Small Skew Pen - General use tip for cutting, fine detail. A very versatile tip, especially for small work.
Long Small Skew #TRIM1S-L
Long Small Skew, long version of the 1S tip. Used for cutting and detailing.
Large Spear #TRIM5L
Very large spear, sharp on both edges for detail work.
Medium Spear #TRIM5M
Medium Spear, sharp on both edges for detail work.
Medium Spoon #TRIM30M
Medium Spoon tip, popular for working with wax.
Aker's Point #TRIM32M
Large Aker's Point (Waxer), used primarily for working with wax.
Long Waxer #TRIMPK1
Long Waxing Point, delicate, slender tip for working with wax.
RazerTRIM Cords
#TRIMCORD1HP connects a pen to the D500 and D500x
#TRIMCORD1H connects a pen to the D1 and D2
